9W CRI>90 NTO-09 100x300mm Rectangle NTO LED mini panel light module

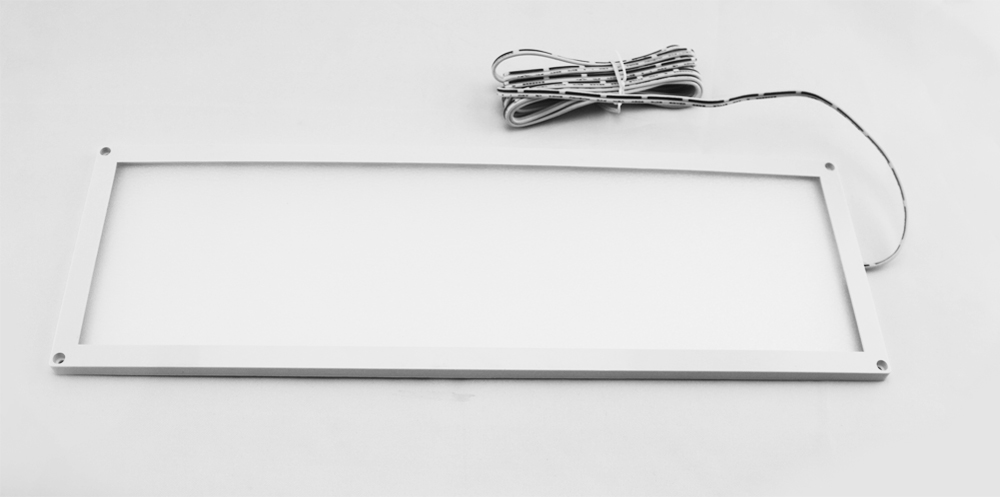

300x100mm NTO LED panel module

 1. Product Specification

300x100mm Rectangle NTO module

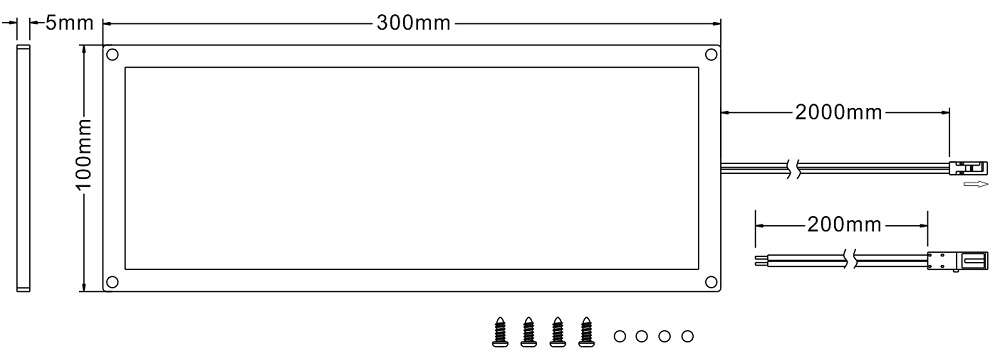

300x100mm NTO LED panel module dimension



     Product Name: NTO-09 CRI>90  9W 100x300mm NTO LED Light Module

     Input Voltage: 12V/24V DC

     Power Consumption: 9W

     Heat Sink Material: Aluminum back plate

     Beam Angle: 100 degree

     Standard CRI: CRI>90(90-95)

     Color Temperature: 3000k, 4000k, 6000k optional

9W CRI90-95 NTO-09 300x100mm Rectangle NTO LED mini panel light module

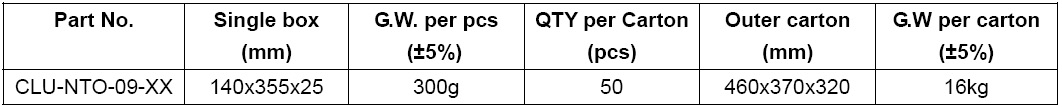

2. Standard Blister Package Information

9W CRI90-95 NTO-09 300x100mm Rectangle NTO LED mini panel light module package

Beside the standard blister package, Coolight also can provide white box or Color print box, pls contact us for the details.



3. How To Install?

CRI 90-95 NTO standard series product installation

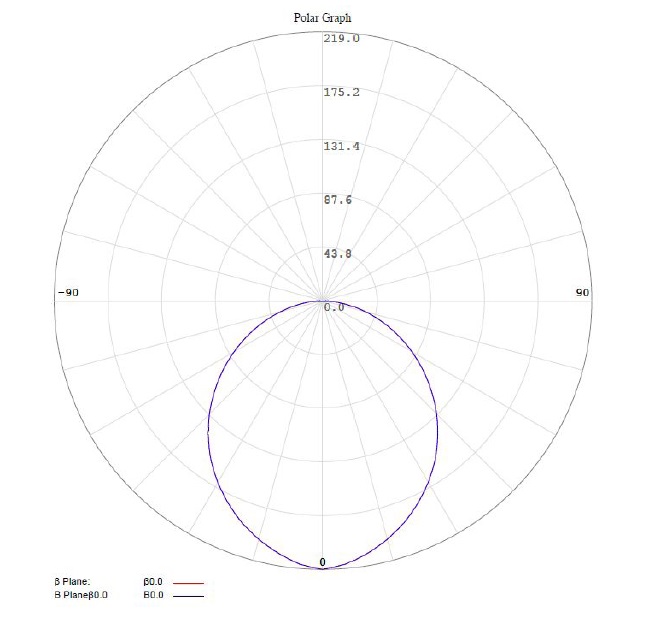

4. Light Distribution Curve

Light Distribution Curve(cd)

300x100mm light distribution curve

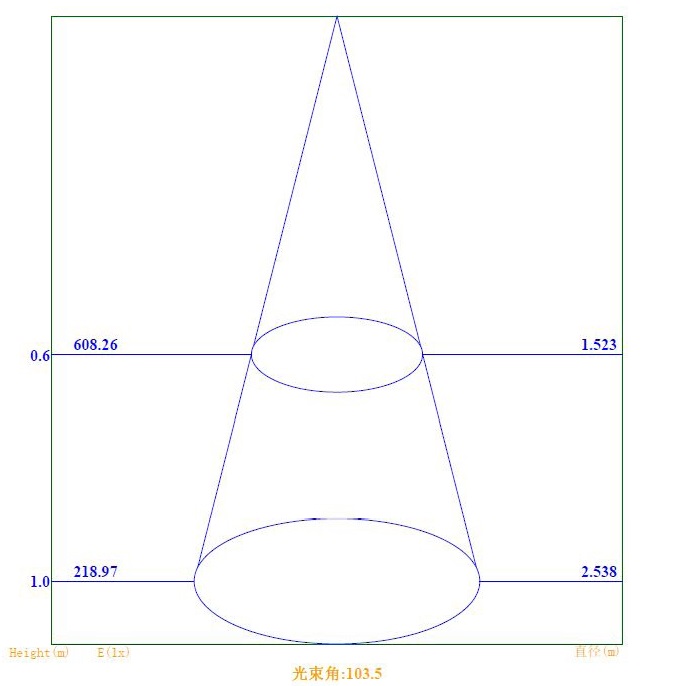

 Lux Test Diagram

300x100mm lux testing
