7W CRI>90 NTO-07 100mm Quarter Annulus NTO LED mini panel light module

100mm Quarter Annulus NTO light module



 1. Product Specification

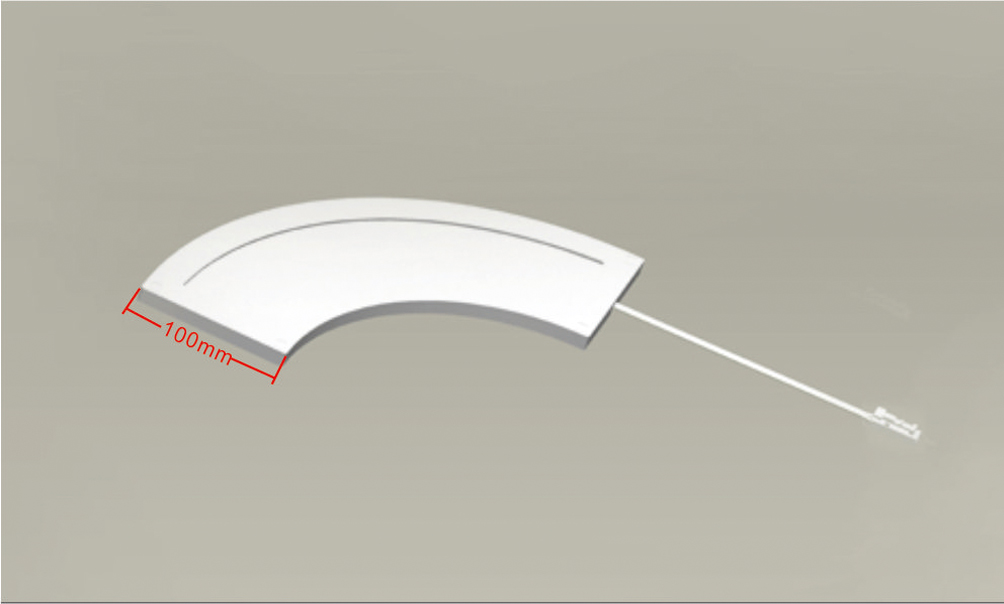

100mm Quarter Annulus NTO LED module

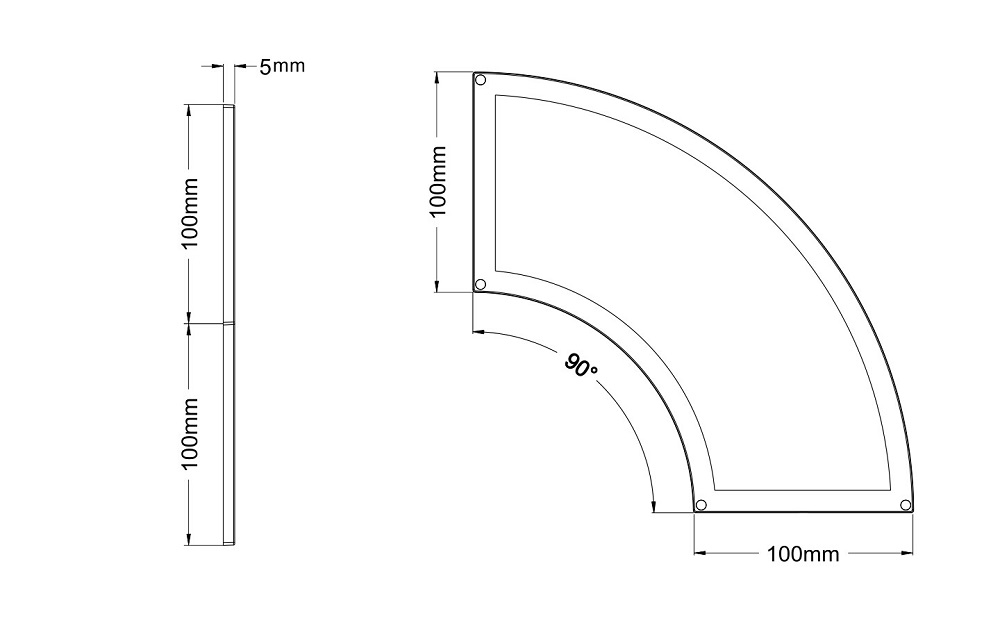

100mm Quarter Annulus NTO light module-d

     Product Name: NTO-07 CRI>90 100mm Quarter Annulus NTO LED light module

     Input Voltage: 12V DC

     Power Consumption: 7W

     Heat Sink Material: Aluminum back plate

     Beam Angle: 100 degree

     Standard CRI: CRI>90(90-95)

     Color Temperature: 3000k, 4000k, 6000k optional

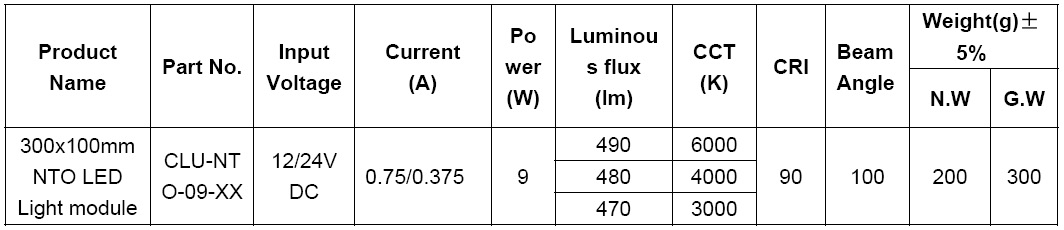

9W CRI90-95 NTO-09 300x100mm Rectangle NTO LED mini panel light module



2. Standard Blister Package Information

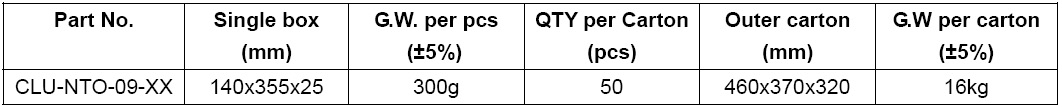

9W CRI90-95 NTO-09 300x100mm Rectangle NTO LED mini panel light module package

Beside the standard blister package, Coolight also can provide white box or Color print box, pls contact us for the details.



3. How To Install?

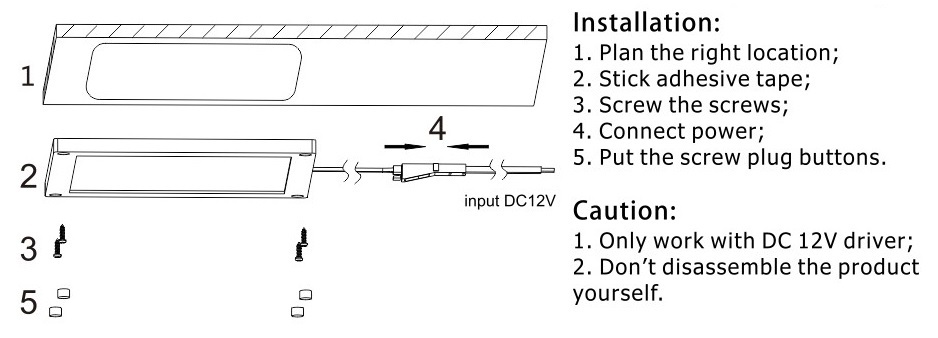

CRI 90-95 12VDC NTO standard series product installation



4. Light Distribution Curve

Light Distribution Curve(cd)

300x100mm light distribution curve

 Lux Test Diagram

300x100mm lux testing
