3W CRI>90 NTO-03 100x100mm Square NTO LED mini panel light module

100mm square NTO LED module



1. Product Specification

     Product Name: NTO-03 CRI>90  3W 100x100mm NTO LED Light Module

     Input Voltage: 12V/24V DC

     Power Consumption: 3W

     Heat Sink Material: Aluminum back plate

     Beam Angle: 100 degree

     Standard CRI: CRI>90 (90-95)

     Color Temperature: 3000k, 4000k, 6000k optional

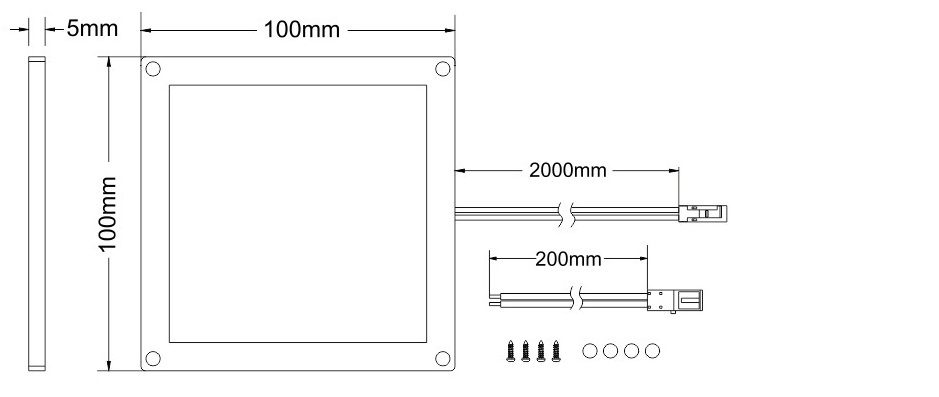

NTO-03 dimension

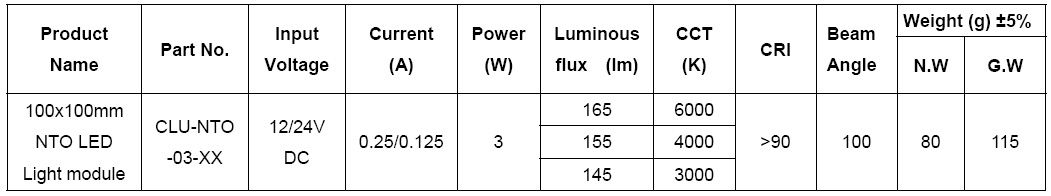

3W CRI 90-95 NTO-03 100x100mm Square NTO LED mini panel light module

2. Standard Blister Package Information

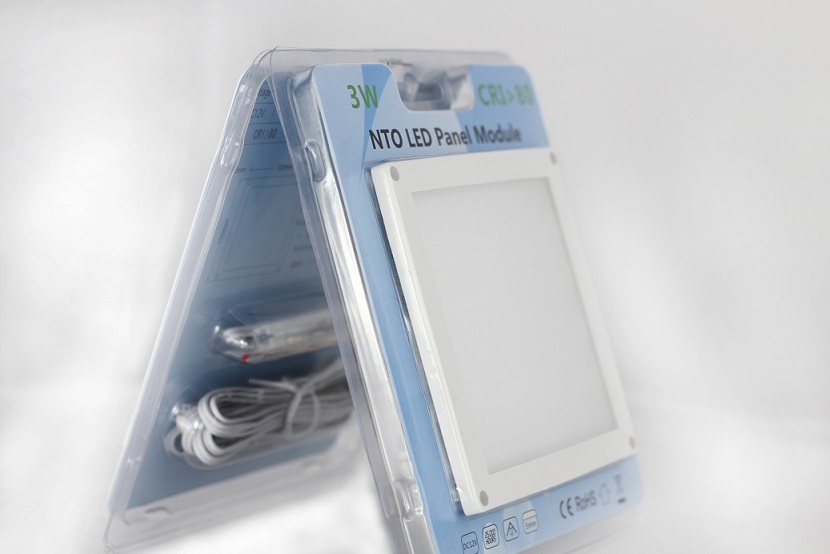

NTO-03 blister package

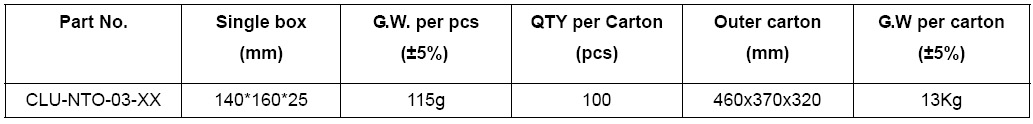

3W NTO-03 100x100mm Square NTO LED mini panel light module CRI 90-95 package

Beside the standard blister package, Coolight also can provide white box or Color print box, pls contact us for the details.



3. How To Install?

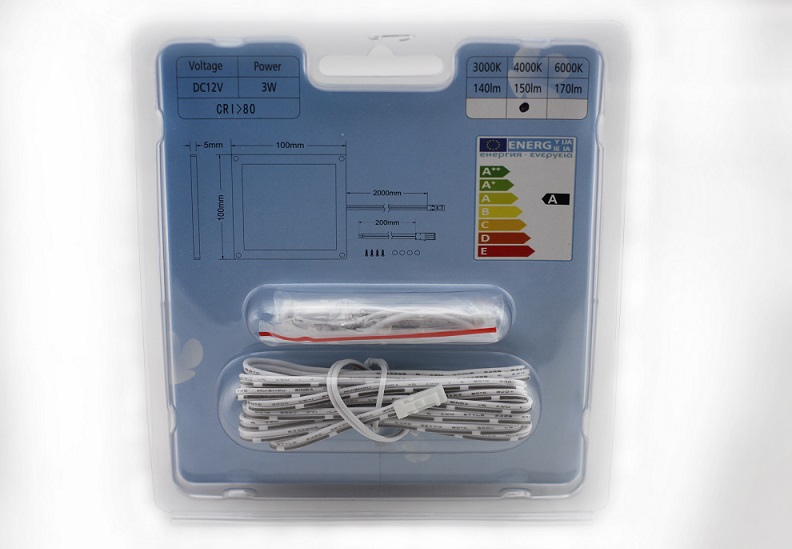

NTO-03 2meter wire and connector

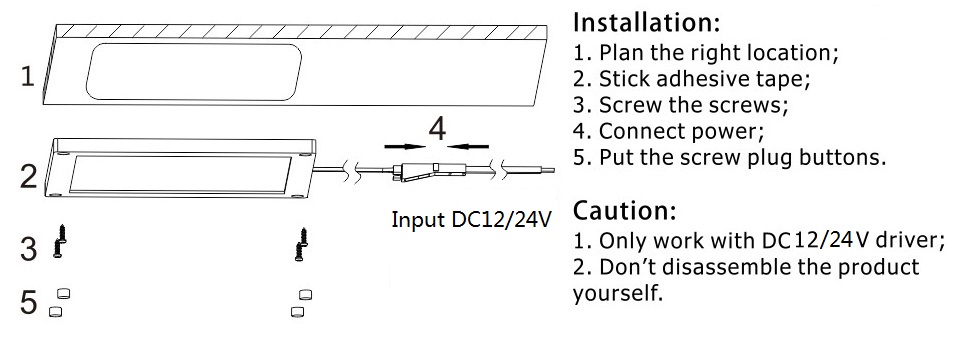

CRI 90-95 NTO standard series product installation



4. Light Distribution Curve

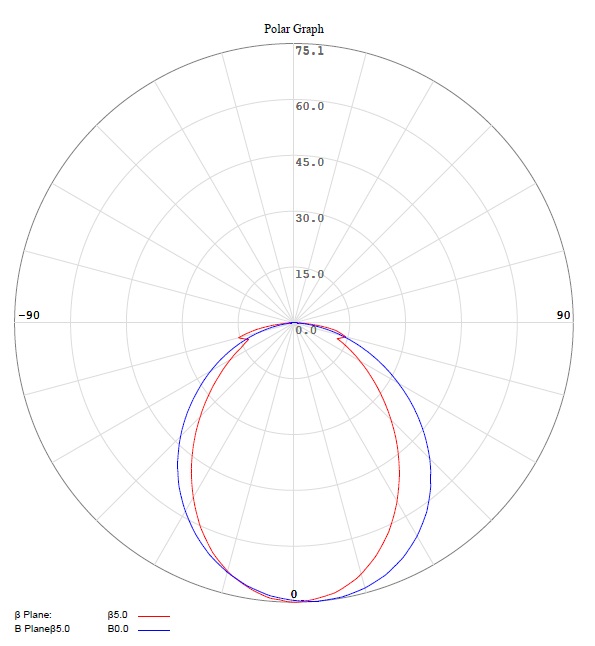

Light Distribution Curve(cd)

NTO module light distribution curve

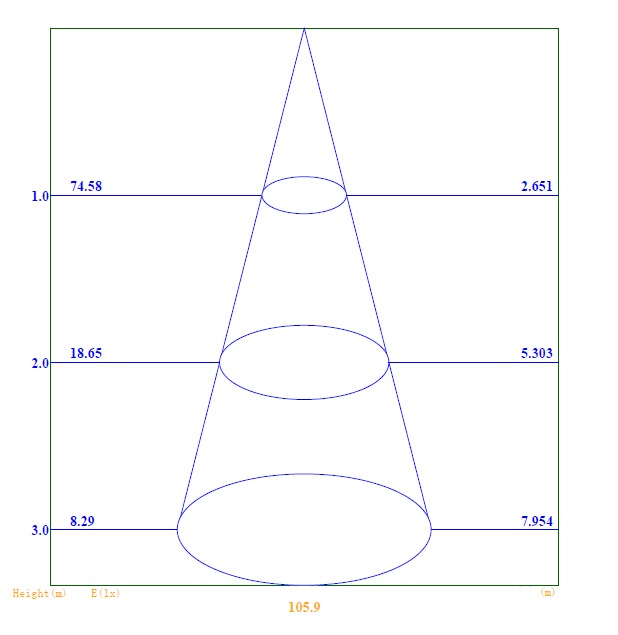

Lux Test Diagram

NTO LED module lux



CONTACT US NOW!

Need IES files for lighting design?

Asking for the 100x100mm square NTO module IES files!
