2W CRI>90 NTO-01 100mm Triangle NTO LED mini panel light module

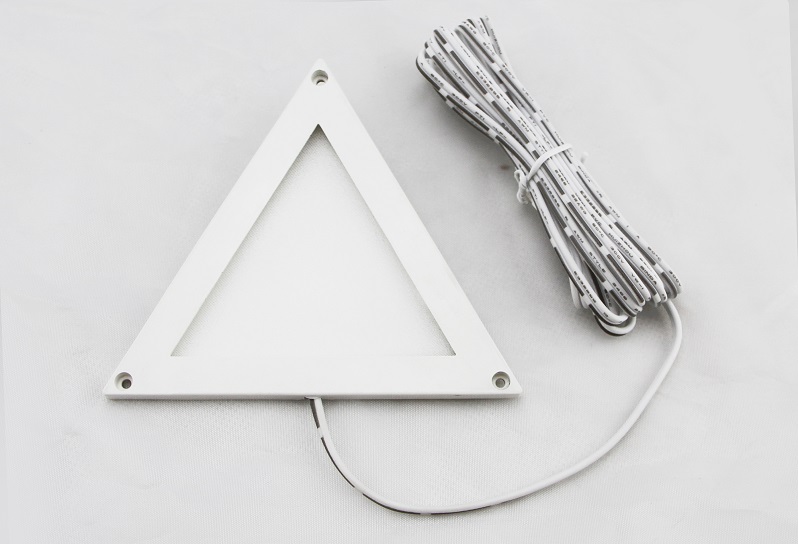

100mm-triangle NTO light module



 1. Product Specification

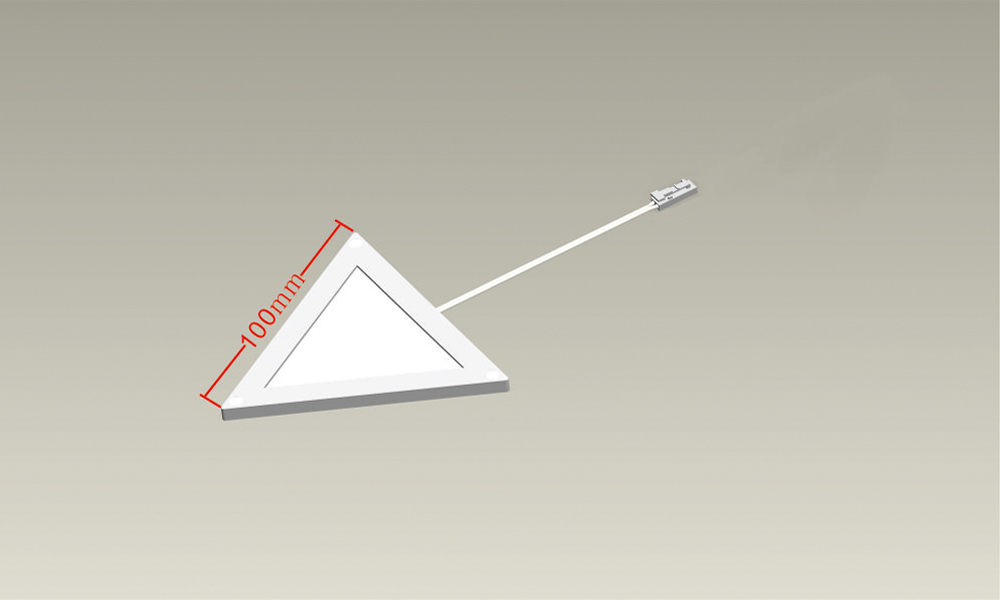

100mm side Triangle NTO LED panel

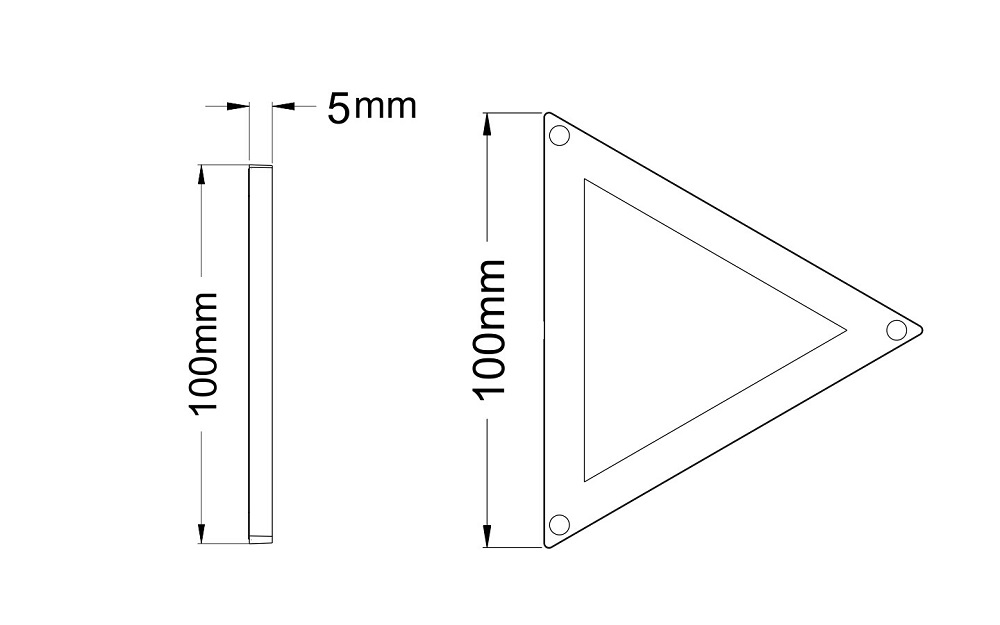

100mm-triangle nto light module-drawing

     Product Name: NTO-01 CRI>90  2W 100mm Triangle NTO LED light module

     Input Voltage: 12V DC

     Power Consumption: 2W

     Heat Sink Material: Aluminum back plate

     Beam Angle: 100 degree

     Standard CRI: CRI>90(90-95)

     Color Temperature: 3000k, 4000k, 6000k optional

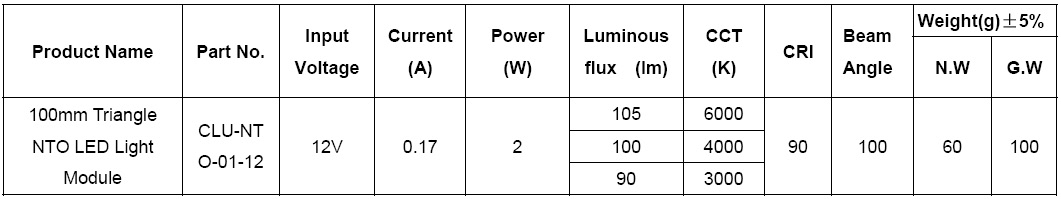

2W CRI90-95 NTO-01 100mm Triangle NTO LED mini panel light module



2. Standard Blister Package Information

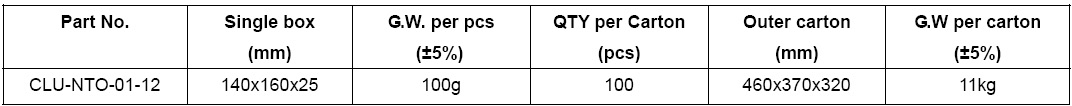

2W CRI90-95 NTO-01 100mm Triangle NTO LED mini panel light module package

Beside the standard blister package, Coolight also can provide white box or Color print box, pls contact us for the details.



3. How To Install?

CRI 90-95 12VDC NTO standard series product installation

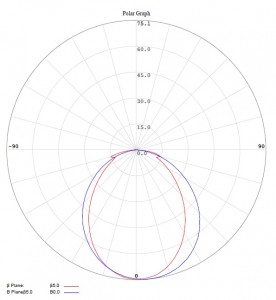

4. Light Distribution CurveNTO module light distribution curve

Light Distribution Curve(cd)

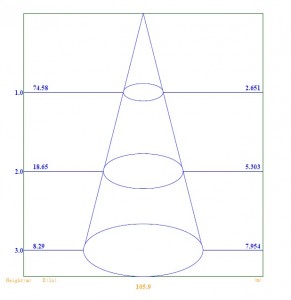

NTO LED module lux

 Lux Test Diagram
